Our Wheelchairs Mounts range is comprised by many different categories and types. Below is just a sample of the most common mounts.

The DAESSY Mounting System is a component based system that allows for customization and limitless configurations to meet mounting needs.

The core elements of the DAESSY Mounting System are the Standard DAESSY Wheelchair Mounts, the accessory Desk Mount and the DAESSY Rolling Mounts. These mounts are available in a standard configuration, or can be modified with common variations, component substitutions or additions for more customization at the user level.

The DAESSY Rigid Mount (DRM1) provides a simple but highly adaptable and adjustable support structure for Mounting laptop computers or communication devices on wheelchairs. The Mount consists of two lengths of tube Rigidly connected to form a right angle structure. The Mounted device is attached to a horizontal tube crossing the wheelchair and supported by a vertical tube in a clamp that is permanently attached to the wheelchair. Both left or right-hand Mounting are possible and the Mount can be precisely positioned for accessibility by the user. The device may be quickly detached from the Mount, and to allow unimpeded access to the user the Mount may be lifted up completely out of the frame clamp or it may slightly lifted and swung to the side. All common wheelchair frame tube sizes, shapes and orientations can be accommodated. Variations can be made in the length and shape of the tubes, and in the other parts, to adapt the Rigid Mount to any wheelchair.

The Rigid Mount ROP Version is similar to the standard Rigid Mount, but is connected to the wheelchair with a Removable Frame Clamp Assembly. The Removable Outer Piece and Receiver (ROP & RFCR) that allow the Mount assembly to be locked in place replace the standard Outer Piece and Index Clamp (UFCOP & IC1). The ROP Version allows for attachment to Tilting Seat Systems and installation beyond 15° from vertical. Additionally the mount can be quickly removed from the wheelchair. This Mount is non-directional and can be attached to either side of the wheelchair with the same components.

The DAESSY Folding Mount (DFM2) as the name implies can be folded away from the user. The two tubes of the Mount are connected by a flexible joint and except for this feature it is identical to the Rigid Mount. The flexible joint allows the horizontal tube, with the device attached or removed, to be lifted up to the side until the two tubes are parallel in a straight-up orientation and then rotated down until parallel to the vertical tube alongside the wheelchair. When folded and removed from the wheelchair the Folding Mount forms a more compact structure than the Rigid Mount.(not shown)

The DAESSY Folding Mount ROP Version DFM2ROP is functionally identical to the standard DAESSY Folding Mount. The ROP Version allows for attachment to Tilting Seat Systems and installation beyond 15° from vertical. The Removable Outer Piece and Receiver that allows the Mount assembly to be ‘locked’ in place replace the standard Outer Piece and Index Clamp and allow the Mount to be quickly removed from the wheelchair. This Mount is non-directional and can be attached to either side of the wheelchair with the same components.

The DAESSY Locking Swing-Away Mount (DLSA7) was developed in response to many requests for a device Mount that could be moved out of the way and back into place by the user. Similar in appearance to the Rigid Mount but very different in structure the Locking Swing-Away Mount consists of a single length of tube bent to a right angle shape and supported in a clamp that allows the Mount to be swung away from the user in the manner of a gate. A Locking mechanism located at the clamp and operated by a cable running underneath the Mounted device controls the swing-away action. In some applications the Mount may be swung completely around and locked beside the wheelchair to allow the user to approach a table or desk. In common with the Rigid and Folding Mounts the device may be readily detached and the Locking Swing-Away Mount may be lifted completely out of the clamp on the wheelchair.

The DAESSY Rear Folding Mount (DRFM6) also allows a device to be precisely positioned for use but with this Mount the device is folded away behind the backrest of the wheelchair when not needed. Unlike the other DAESSY Mounts the Rear Folding Mount is permanently attached part way down the side of the wheelchair and cannot be lifted out of its attachment clamp. Two flexible joints, one located at the attachment to the wheelchair the other between the two tubes permit a three step Rearward Folding action. In use the joint between the tubes forms a right angle with one tube horizontal across the wheelchair and the other tube leaning forward from the attachment point. The first step in the Folding motion swings the horizontal tube, with the device attached or removed, forward away from the user until the two tubes form a straight line. Both tubes then swing to the Rear at the flexible attachment point and finally the horizontal tube is swung in behind the backrest of the wheelchair.

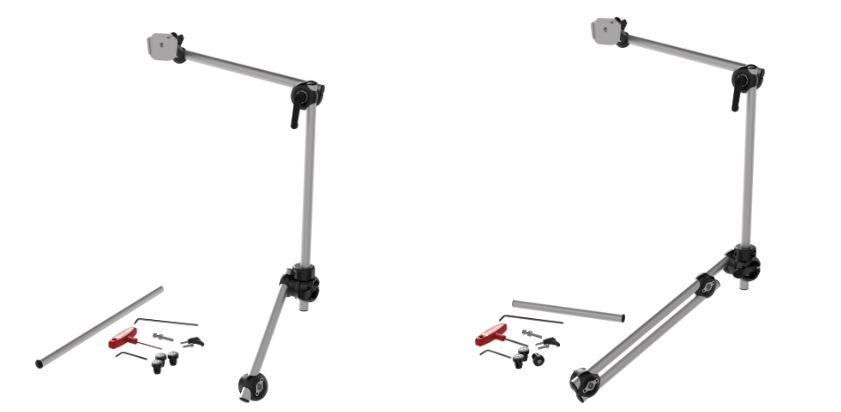

The two articulating joints and height adjustable collar of the DAESSY Positioner Mount allow easy adjustment of the height, angle and location of a mounted AAC device or laptop.

-6 adjustment locations
-16" of height adjustment standard
-Easily removed from the wheelchair at the Frame Clamp location
-Compatible with existing DAESSY Frame Clamp and Quick Release components
