MagniLink U Student
MLU Student is a flexible VGA-system with auto focus. It offers the possibility of connection to a computer system and uses split screen technique between reading camera, distance camera and computer on the same monitor.
The generous space under the camera facilitates writing, painting and other work with your hands. Most parts are produced in metal in order to make the system very solid and it is ideal to use in a school environment.
Besides natural colours the MLU Student also features positive/negative picture with increased contrast and artificial colours. Three different positions and magnifications can be preprogrammed, which facilitates the orientation in a classroom. All functions are easily controlled from a separate control box.
Main features
Split screen
Guiding line
Auto focus
Motorized zoom
Positive/negative picture
Contrast control with increased contrast
Overview picture
Artificial colours
Programmable zoom and pos.Technical specifications
Magnification range 17" monitor: MLUST 2,3 - 46 x - MLUSTPRO 1,4 - 46 x
Free space distance: 310 mm
Focusing distance: 0 - 80 mm (at max magnification)
Size of the reading table: 420 x 310 mm (W x D)
Mains voltage: 100 - 240 V / 50 - 60 Hz
Weight: MLUST 16 kg - MLUSTPRO 18 kg

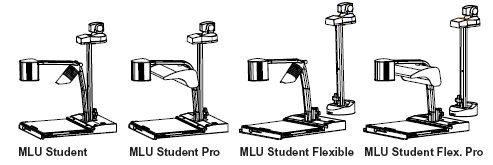

MLU Student is available in four versions. In MLU Student/ Student Pro the distance camera is integrated in the system and in MLU Student Flexible/Flexible Pro the distance camera is separated from the system, for a more flexible placing. MLU Student/Student Flexible have a halogen lamp and the magnification starts at 2,3 times. The pro models are instead equipped with a large fluorescent lamp that gives a very uniform light without shadows. The magnification starts at 1,4 times, which gives an excellent overview.
