MKP - Assistive Hardware Products - Visual Impairment - CCTV with PC

MLU Split is a flexible VGA-system with auto focus. It offers the possibility of connection to a computer system and uses split screen technique between reading camera and computer on the same monitor.

Besides natural colours the MLU Split also features positive/negative picture with increased contrast and artificial colours. All functions are easily controlled from a separate control box.

The generous space under the camera facilitates writing, painting and other work with your hands. The reading table is in size A3 and entirely produced in metal, which makes it very solid. Friction brakes in both directions facilitate reading of columns and lines.

Features:
Split screen
Guiding line
Auto focus
Motorized zoom
Positive/negative picture
Contrast control with increased contrast
Overview picture
Artificial colours
Programmable zoom

Technical specifications:
Magnification range 17" monitor: MLUSP 2,3 - 46 x - MLUSPPRO 1,4 - 46 x
Free space distance: 310 mm
Focusing distance: 0 - 80 mm (at max magnification)
Size of the reading table: 420 x 310 mm (W x D)
Mains voltage: 100 - 240 V / 50 - 60
Weight: MLUSP 13 kg - MLUSPPRO 15 kg

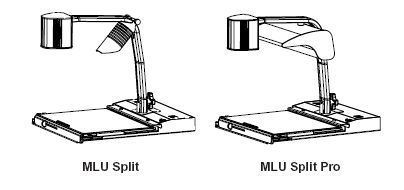

MLU Split is available in two models. MLU Split has a halogen light and the magnification starts at 2,3 times. MLU Split Pro is equipped with a large fluorescent lamp that gives a very uniform light without shadows. The magnification starts at 1,4 times, which gives an excellent overview.
